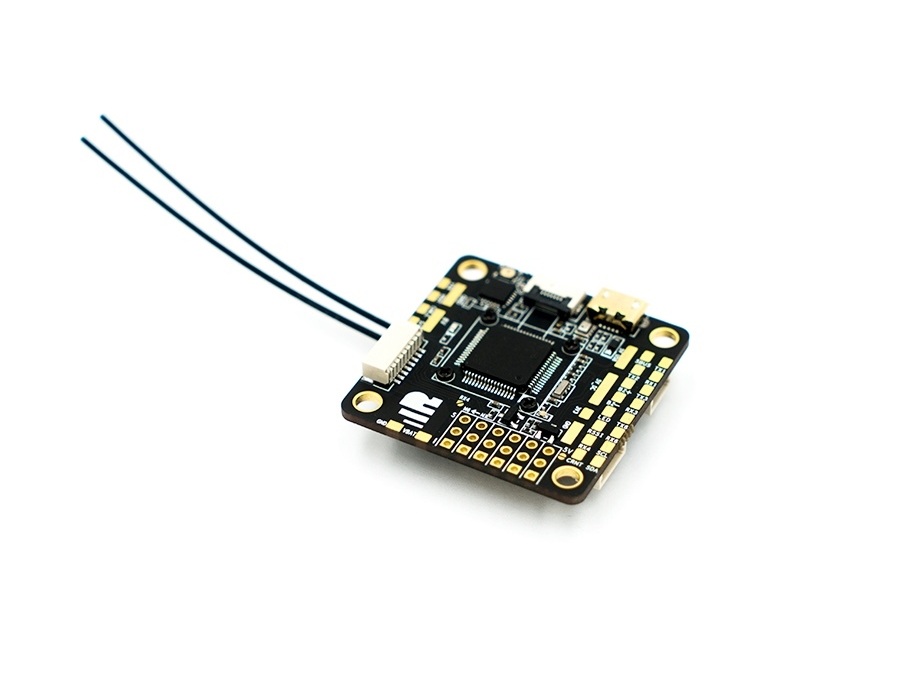

FrSky FlightController Omnibus F4 V6 – R-XSR – EU
The FrSky RXSR-FC (OMNIBUS F4 V6) uses the MPU6000 over SPI to produce stable flight performance. Integrated with the RXSR receiver mounted on-board in a protection box. It also features a barometer and AB7456 OSD chip for the Betaflight integrated OSD.
The RXSR-FC (OMNIBUS F4 V6) supports 3-6s Lipo direct input, and has 5 hardware UARTs.
STM32 F4 Processor
MPU6000 Gyro via SPI
Integrated Betaflight OSD
5 UART Ports
Direct plugin 3-6S Lipo
Built in LC Filter
5V 1000mA BEC
8V 1000mA BEC
More caps to reduce gyro power noise.
STM32 F405 MCU, Runs Betaflight firmware (supported from v3.2)

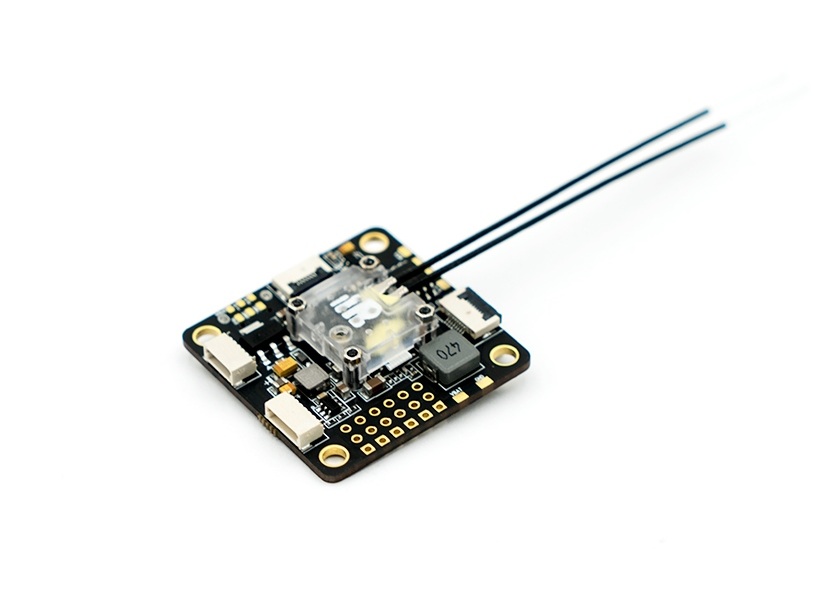

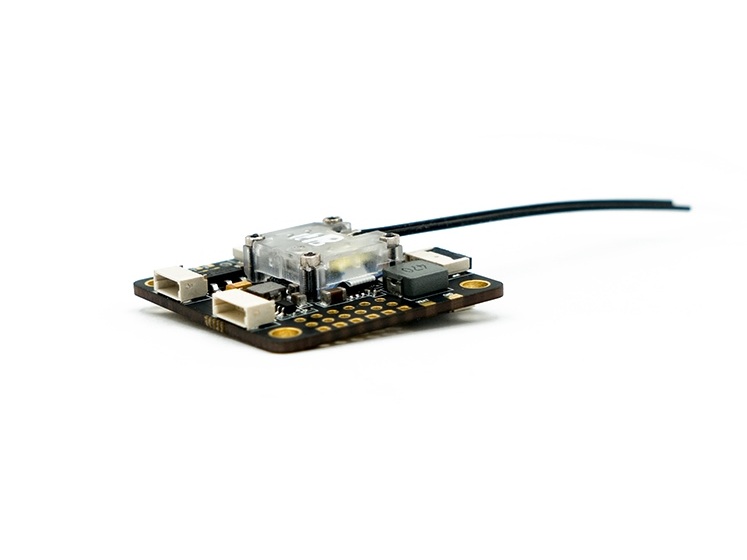

FrSky RXSR receiver in protection box
MPU6000 over SPI Bus
30.5×30.5 mm mounting holes
Supports Lipo direct plug-in (3-6S)
Supports 5V 1A BEC output (Buck)
Supports 8V 1A BEC with LC filter output for the camera and VTX (Buck)
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
