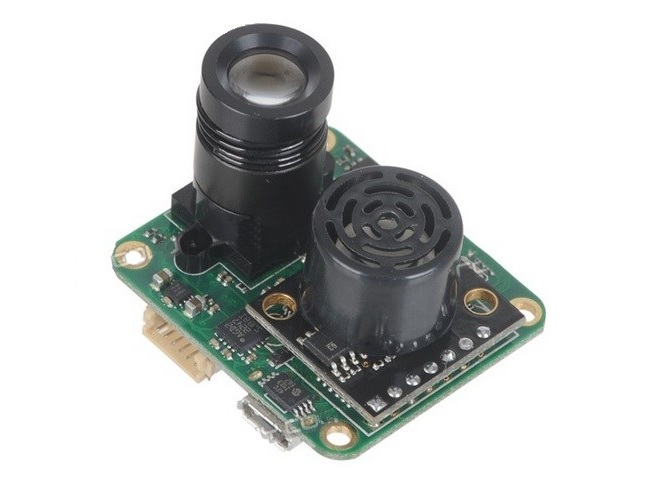

CUAV PX4FLOW Kamera V2.1 - mit Sonar MB1043 zu Pixhawk

CUAV PX4FLOW Kamera V2.1 – mit Sonar zu Pixhawk

Features:
– MT9V034 machine vision CMOS sensor with global shutter
– Optical flow processing at 4×4 binned image at 400 Hz
– Superior light sensitivity with 24×24 µm super-pixels
– Onboard 16bit gyroscope up to 2000°/s and 780 Hz update rate, default high precision-mode at 500°/s
– Onboard sonar input and mount for Maxbotix sonar sensors. (HRLV-EZ4 )
– USB bootloader
– USB serial up to 921600 baud (including live camera view with QGroundControl)
– USB power option
– Does fit the MatrixVision Bluefox MV mounting holes (camera center off-centered)

Specifications:
– 168 MHz Cortex M4F CPU (128 + 64 KB RAM)
– 752×480 MT9V034 image sensor, L3GD20 3D Gyro
– 16 mm M12 lens (IR block filter)
– Size 32.5*38mm
– Power consumption 115mA / 5V
– MB1043 sensor include
