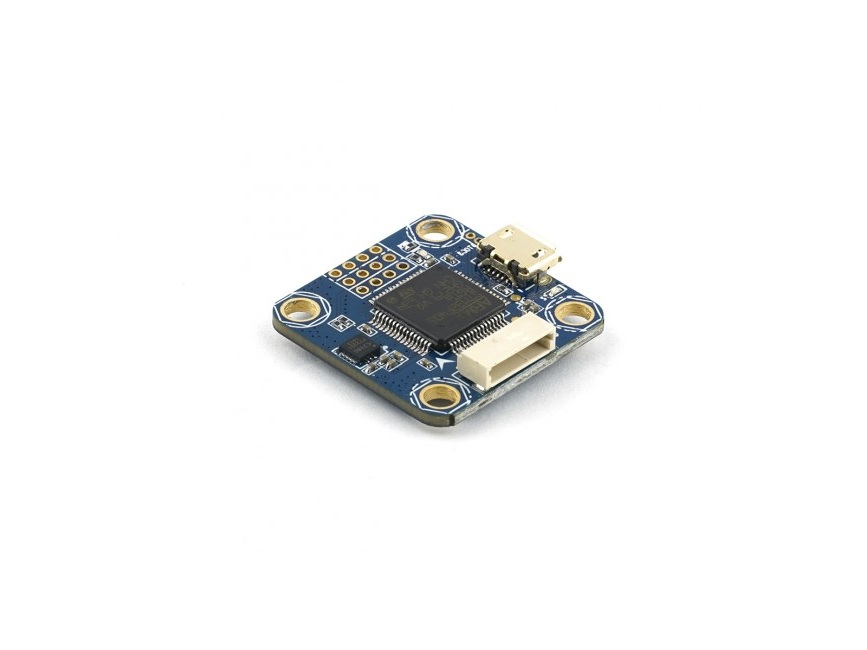

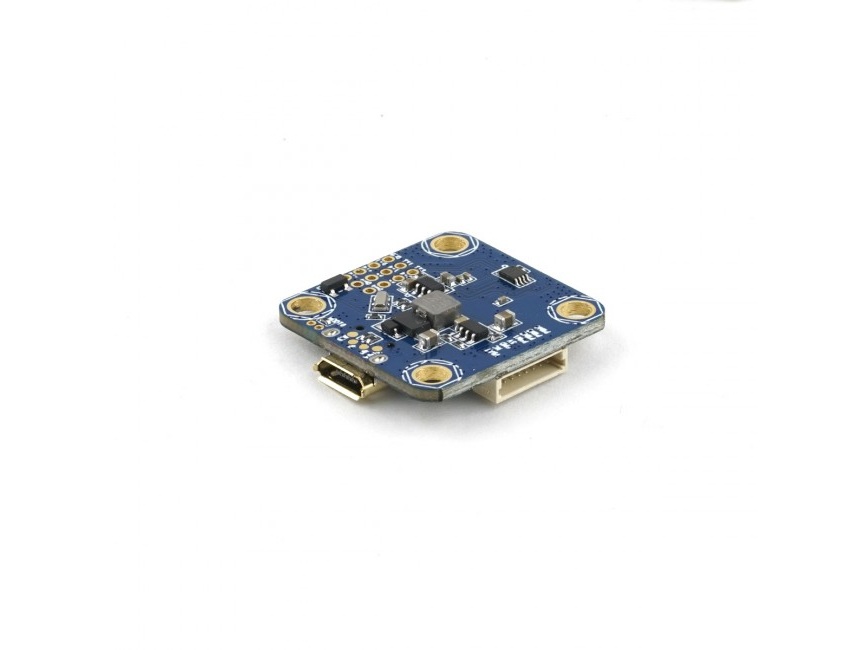

Flight Controller Airbot – F4 Nano V4
25x25mm Flight controller with 20×20 mm mounting holes.
Using F405 with ICM20608 GYRO, onboard PDB and PWM output on corner,
Supports direct 1-4s LIPO input(1A BEC),NO FLASH.
Software controlled inverter for UART1 (needs Betaflight update)
Features:
STM32 F405 MCU, Using Betaflight Airbot F4 target
SBUS/PPM input (Pinheaders)
4PWM output (Pinheaders)
Only 25x25mm, mount holes 20x20mm
ICM-20608 Gyro over SPI BUS
Auslieferung mit der Firmware Betaflight 3.1.0
Passendes Anschlusskabel Zum Artikel
